Description:
OUTBACK ARMOUR SUSPENSION KIT FRONT ADJUSTABLE BYPASS - TRAIL FOR MAZDA BT-50 10/2011 +
Outback Armour suspension kits are designed and engineered in Australia to provide the strength, durability and reliability required for demanding off-road conditions.
Adjustable internal bypass provides 20+ stages of velocity sensitive tuning of damping control. Dial in the front and rear adjustments as and when required to suit the accessories or cargo loads, terrain, conditions and personal comfort preferences.
- Increase bypass (-) for comfort
- Decrease bypass (+) for control
This front lift kit includes struts & coil springs for self-assembly using the original vehicle strut mounts. A complete set of rubber bushes, washers and dust boots are supplied.
Coil spring seat spacers provided for height adjustment to suit bullbars, winches and additional front loads.
Kit Contents:
- 2 x Adjustable Bypass - Front Strut
- 1 x Front - Trail
Adjustable Bypass - Front Strut
Designed and engineered in Australia by Outback Armour.
Adjustable internal bypass provides 20+ stages of velocity sensitive tuning of damping control. Dial in the front and rear adjustments as and when required to suit the accessories or cargo loads, terrain, conditions and personal comfort preferences.
- Increase bypass (-) for comfort
- Decrease bypass (+) for control
High strength polymer adjustable spring seat to fine tune ride height or to compensate for added accessories. Supplied with a complete fitting kit including rubber bushes.
The maximum recommended ride height for this strut, measured from the centre of the wheel to the guard is 600mm.

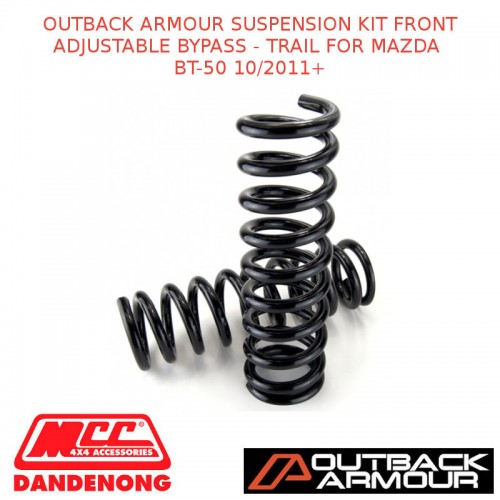

Front - Trail
Outback Armour coil springs are designed and engineered for Australia's toughest environments. Manufactured from high endurance chromium-vanadium alloy material, phosphate treated and powder coated for maximum corrosion resistance. Lift heights are approximates and conditional on vehicle variants, accessories fitted and loads.
| OUTBACK ARMOUR SPECIFICATIONS | |
| Lift min | 35mm (unladen) |
| Lift range | 35mm-50mm (using spacers) |
| Range | Adjustable Bypass |
| Strut | 65mm twin tube |
