Description:
OUTBACK ARMOUR SUSPENSION KIT REAR ADJUSTABLE BYPASS - EXPEDITION XHD FOR FORD RANGER PX/PX2 9/2011+
Outback Armour suspension kits are designed and engineered in Australia to provide the strength, durability and reliability required for demanding off-road conditions.
Adjustable internal bypass provides 20+ stages of velocity sensitive tuning of damping control. Dial in the front and rear adjustments as and when required to suit the accessories or cargo loads, terrain, conditions and personal comfort preferences.
- Increase bypass (-) for comfort
- Decrease bypass (+) for control
This complete rear “expedition hd” kit suits vehicles with heavy constant load carrying requirements. Refer to the load deflection graph provided to ensure that the vehicle is set up within the appropriate operating range for height and load.
Kit Contents:
- 2 x Adjustable Bypass - Rear Shock
- 1 x Leaf Spring Bush Kit
- 4 x M14 x 88 ID (RND) x 215 L
- 1 x Centre Bearing Spacer Kit
- 2 x Expedition XHD
- 2 x Greasable Pins
- 2 x Greasable Shackles
Performance - Rear Shock:
Designed and engineered in Australia by Outback Armour.
Adjustable internal bypass provides 20+ stages of velocity sensitive tuning of damping control. Dial in the front and rear adjustments as and when required to suit the accessories or cargo loads, terrain, conditions and personal comfort preferences.
- Increase bypass (-) for comfort
- Decrease bypass (+) for control
Supplied with a complete fitting kit including rubber bushes.
The maximum recommended ride height for this shock, measured from the centre of the wheel to the guard is 640mm.

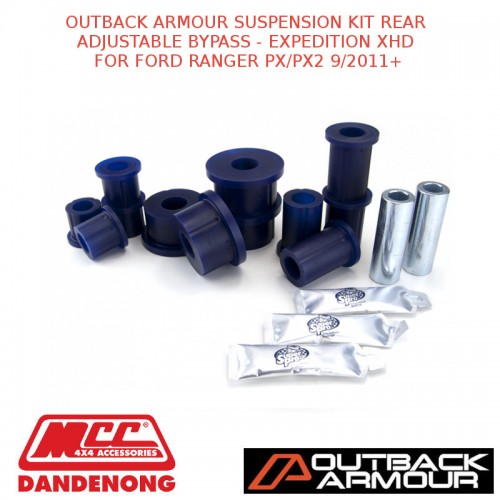

Leaf Spring Bush Kit:
Outback
Armour takes pride in engineering and supplying the highest quality
products. In keeping with this commitment, Superpro polyurethane bush
kits are supplied as standard throughout our suspension range. SuperPro
products are designed and engineered for superior fit and performance
and are manufactured from a proprietary engineering grade elastomer
polyurethane formula with unique material properties resulting in an
extremely durable product.
M14 x 88 ID (RND) x 215 L :
Manufactured
from hardened steel, Outback Armour u-bolts are specifically designed
to be the correct length for its nominated leaf pack which means no
trimming after fitment.
Centre Bearing Spacer Kit:
Recommended for all lifts to improve tailshaft angle and reduce vibrations.Supplied with all required washers, spacers and bolts.
Expedition XHD:
Outback Armour leaf springs are designed and engineered for Australia's toughest environments. Manufactured from high endurance chromium alloy material to maximize comfort, handling and load carrying. Outback Armour "Expedition HD" leaf springs are designed for lift with constant load carrying capabilities.

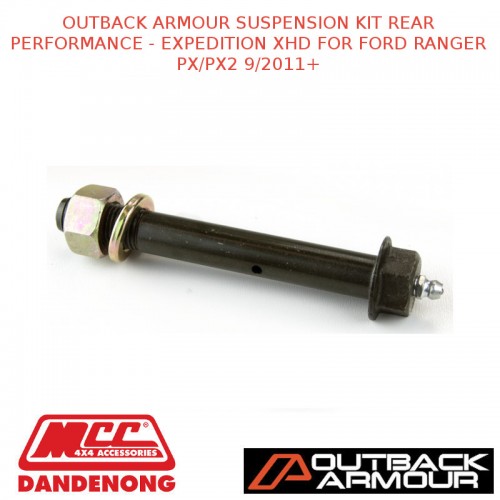

Greasable Pins:
Manufactured
from hardened steel, Outback Armour greasable pins offer the benefit of
extended service life of your polyurethane bushings.

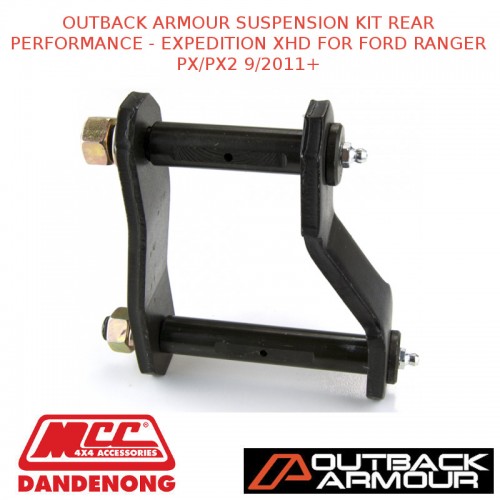

Greasable Shackles:
Manufactured
from hardened steel, Outback Armour greasable shackles offer the
benefit of extended service life of your polyurethane bushings.
| OUTBACK ARMOUR SPECIFICATIONS | |
| Lift rear | 40mm (@ approx 500kg load) |
| Range | Adjustbale Bypass |
| Shock absorbers | 60mm twin tube |
